Model: E9000 (non-fire rated) / EF9000 (fire rated)

Description:

• Heavy Duty Commercial Application

• ANSI/BHMA A156.3, Grade 1

• UL Listed, UL(10C) and UBC (7-2) codes

• UL 3-hour fire rated

• Available for 3’ and 4’ wide doors

• Available with Electric Latch Retraction (see Electrified Hardware section)

• Compatible only with Pamex E9000 trims & accessories

Available Finishes:

• Stainless Steel (US32D/630)

• Satin Chrome (US26D/626)

• Dark Bronze (695)

• Matte Black (US19/622)

Model: E9100 (non-fire rated) / EF9100 (fire rated)

Description:

• Heavy Duty Commercial Application

• Narrow Stile for Storefront and Glass Doors

• ANSI/BHMA A156.3, Grade 1

• UL Listed, UL (10C) and UBC (7-2) codes

• UL 3-hour fire rated

• Available for 3’ and 4’ wide doors

• Available with Electric Latch Retraction (see Electrified Hardware section)

• Compatible only with Pamex E9100 trims & accessories

Available Finishes:

• Stainless Steel (US32D/630)

• Satin Chrome (US26D/626)

• Dark Bronze (695)

Model: E9300 (non-fire rated) / EF9300 (fire rated)

Description:

• Heavy Duty Commercial Application

• ANSI/BHMA A156.3, Grade 1

• UL Listed, UL(10C) and UBC (7-2) codes

• Available for 3’ and 4’ wide doors

• 1/4” turn, hex key dogging (non-fire rated only, E9300)

• Stainless steel two-piece mechanical 3/4” with anti-friction insert and auxiliary deadlocking latch

Available Finishes:

• Satin Chrome (US26D/626)

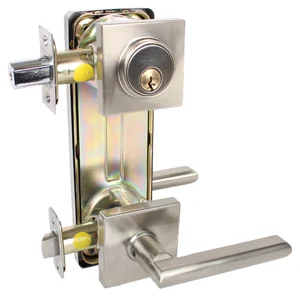

FIS-5 Series

Description:

• Contemporary tubular interconnected locks

• 5-1/2” center-to-center

• ANSI/BHMA A156.12, Grade 2

• Meets ADA requirements

• UL 3-hour fire rated

 Available In:

• Single Locking Only

Available Finishes:

• Polished Chrome (US26/625)

• Satin Nickel (US15/619)

• Matte Black (US19/622)

Model: DD05-67

Description:

• ANSI/BHMA A156.3

• UL Listed for Metal Fire Doors up to 3 Hours

• Material: Stainless Steel & Brass

• Bolt: 3/4”

• Backset: 3/4”

• Vertical Adjustment: 7/8"

• Sold in Pairs Only

Available Finishes:

• Oil Rubbed Bronze (US10B/613)

• Polished Chrome (US26/625)

• Satin Chrome (US26D/626)

Model: DD08-13

Description:

• ANSI/BHMA A156.8

• Non-Handed, Single Acting Doors Only

• Maximum Opening of 110 Degrees

• Minimum Door Thickness: 1-3/8"

• Available in Stop Only, Hold Open and Friction Functions

• Available in Two Sizes, 30" to 36" and 36" to 48" Wide Door

• UL Listed for Stop Only Function Only

Available Finishes:

• Stainless Steel (US32D/630)

• Matte Black (US19/622)

Model #: ES-200

DESCRIPTION:

• ANSI/BHMA A156.31, Grade 2

• UL Listed

• Fail-Secure & reversible for Fail-Safe operation

• Dual Voltage: 280/140mA @ 12/24VDC

• For latch throw up to 3/4" with 1/8" door gap

• Dimension: 1-1/4"W x 4-7/8"H x 1-3/16"D

Available Finishes:

• Stainless Steel (US32D/630)

• Oil Rubbed Bronze (US10B/613)

Model: EMH-R1224

DESCRIPTION:

• ANSI/BHMA A156.15

• UL Listed

• Dual voltage AC or DC inputs of 12 & 24V

• 30lbs of holding force; apply 24V to 12V iput for 75lbs holding force

• Low power consumption of 40mA

AVAILABLE FINISHES:

• Aluminum (US28/689)

Model: EMH-R24120

DESCRIPTION:

• ANSI/BHMA A156.15

• UL Listed

• Dual voltage AC or DC inputs of 24 & 120V

• 24V/40lbs & 120V/35lbs of holding force; apply 120V to 24V input for 110lbs holding force

• Low power consumption of 20mA

AVAILABLE FINISHES:

• Aluminum (US28/689)

Model #: EPS-1

DESCRIPTION:

• Output: 1 Amp @ 12/24VDC (field selectable), filtered and electronically regulated

• Input: 115VAC 60Hz, 600 mA

• Battery Charger: 250mA @ 13.5VDC

• Enclosure: 12"W x 12"H x 4"D

• UL Listed

(Battery Not Included)
